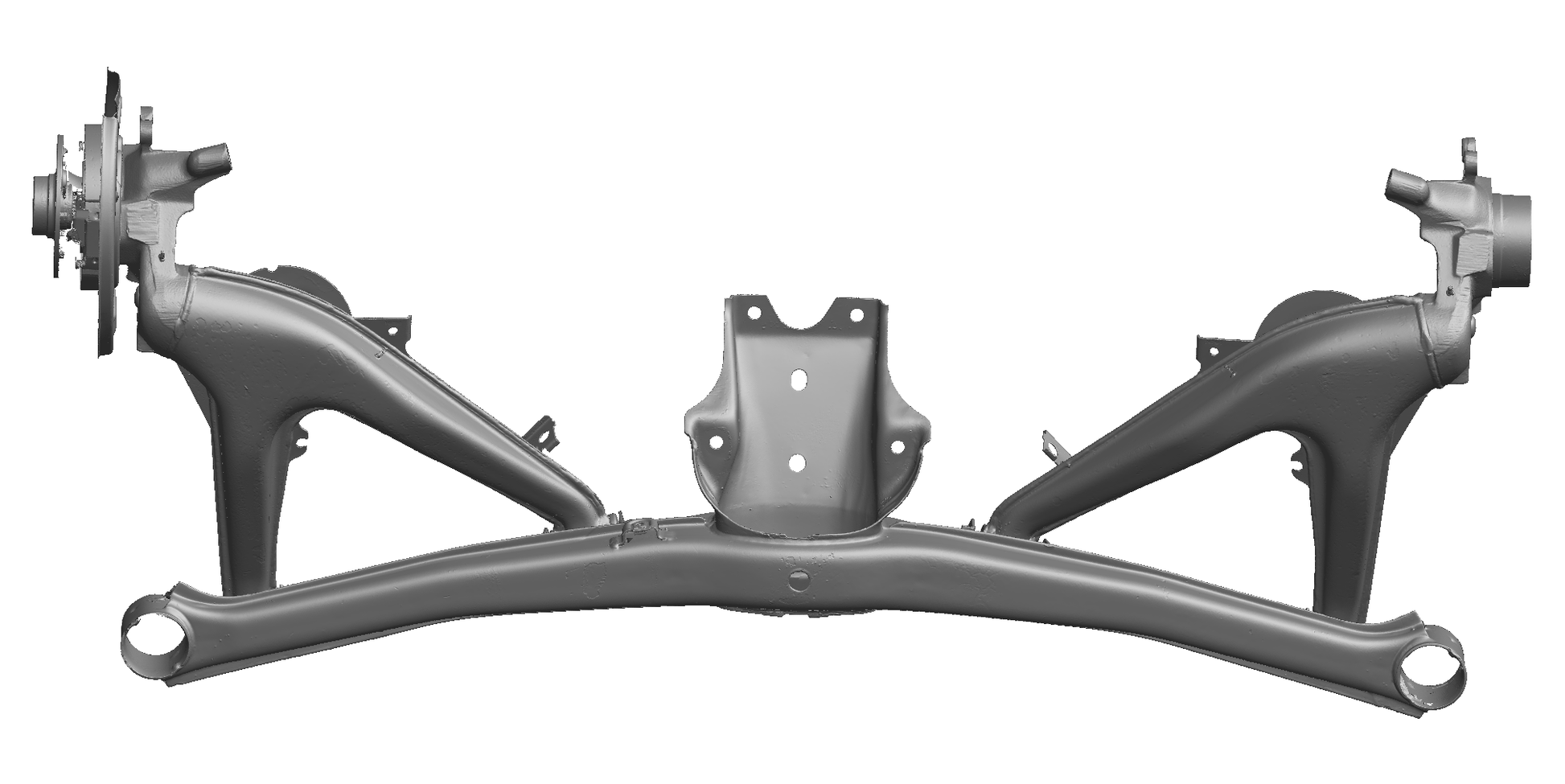

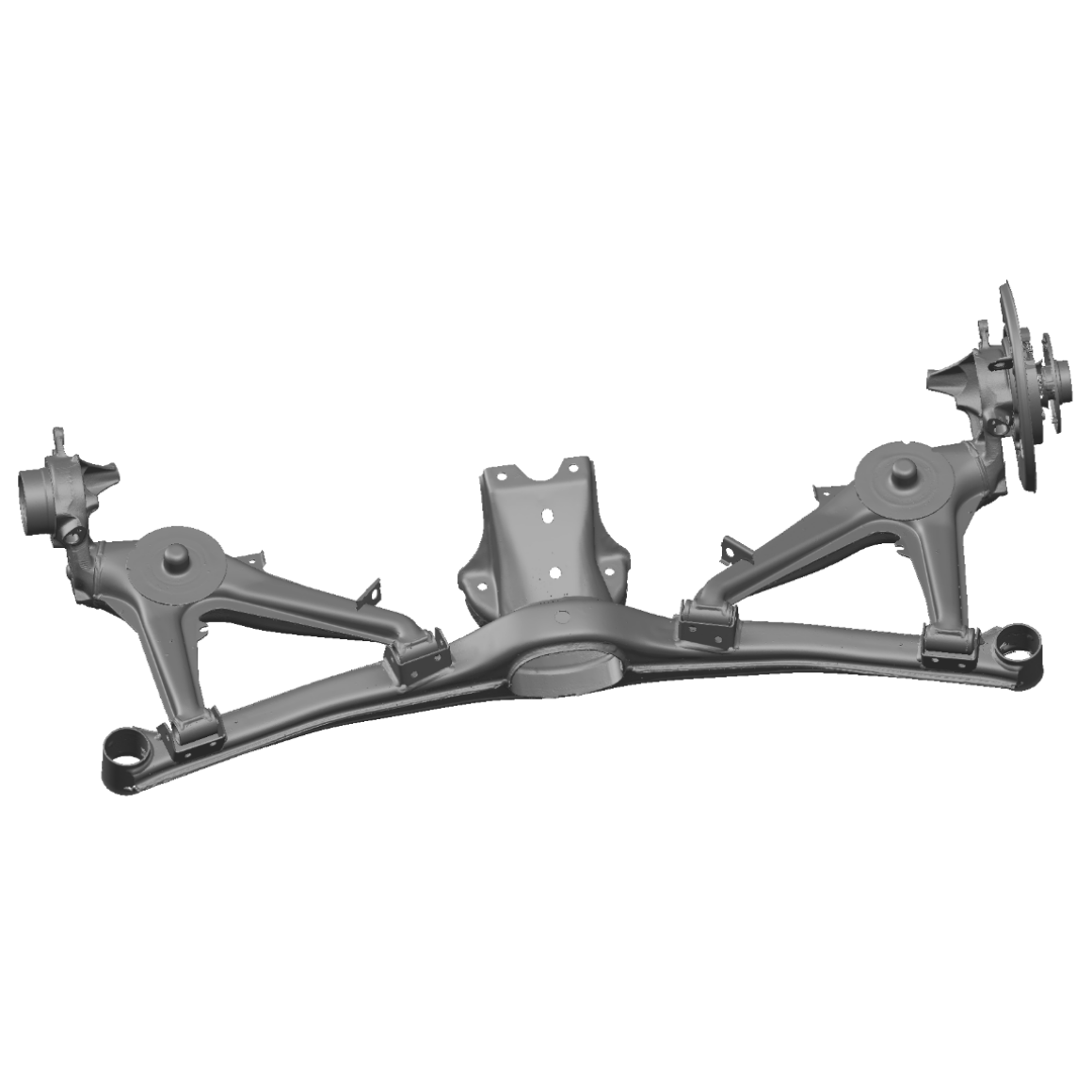

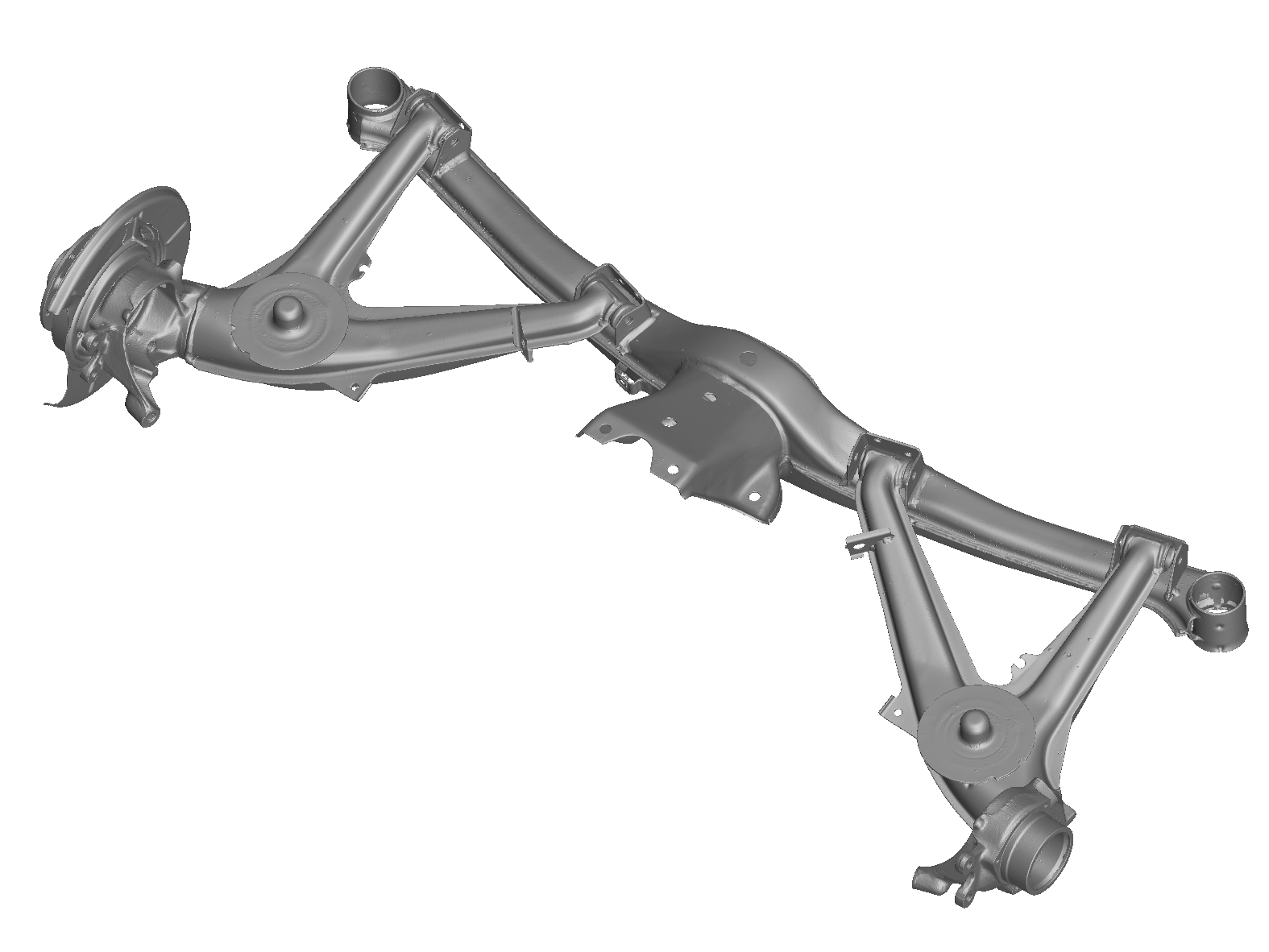

Ultra high quality scan of a good condition E30 Rear Subframe, Left and Right Trailing Arms

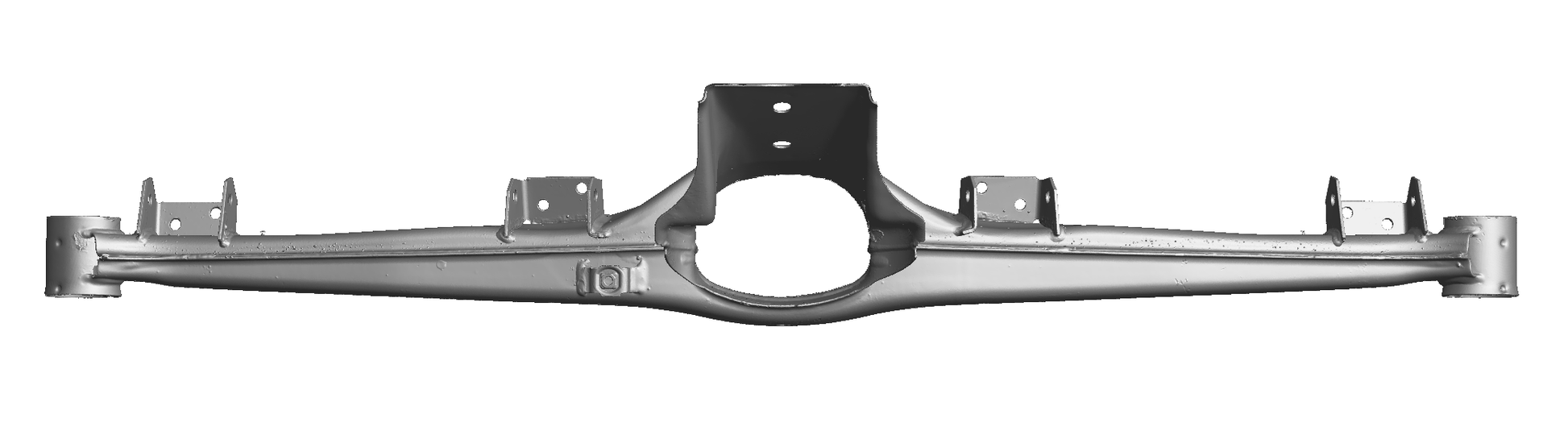

Rear Subframe Info:
Part Number 33311135456 applicable for all BMW E30 Non-M Models. E30 M3 rear subframe is the same with the exception of having two exhaust mount brackets of a different style.
Rear Trailing Arm Info:

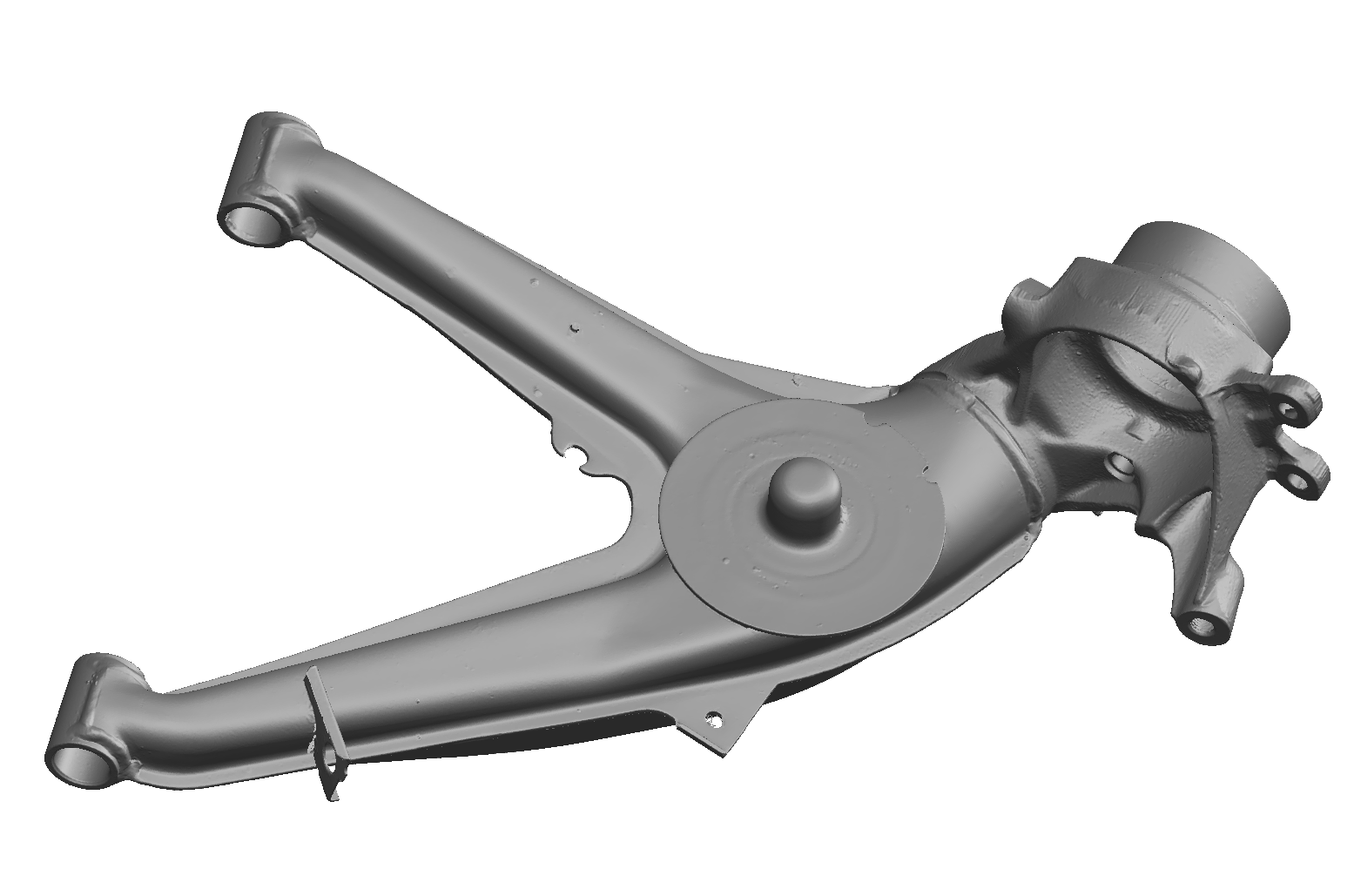

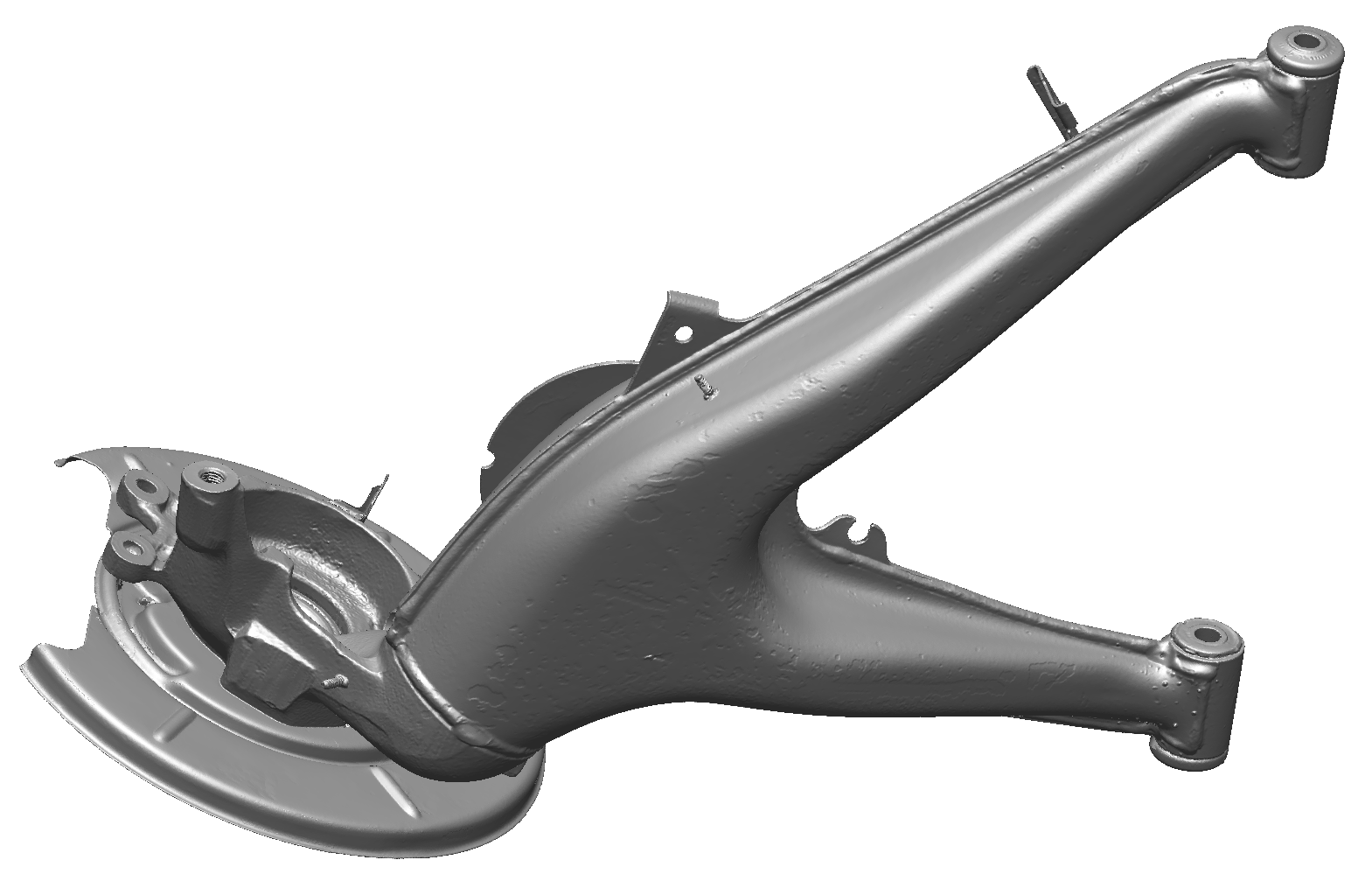

The left side trailing arm, 33321137641, has been scanned with trailing arm bushings, non M dust shield, handbrake shoes, and a 4x100 rear wheel hub installed. The right side trailing arm, 33321137642, has been scanned as a bare trailing arm with no accessories.
If either configuration is needed for the other side the scans can be mirrored.
Purchasing will allow download of STL files as well as an IGES formatted part file that contains a sketch allowing the precise assembly of the rear suspension components.
This 3D scan is licensed, not sold. You may use the scan as a reference to design and manufacture your own parts. You may not resell, redistribute, or upload the scan data in original or modified form. For commercial use, purchase of a Commercial License is required. See full details here.
