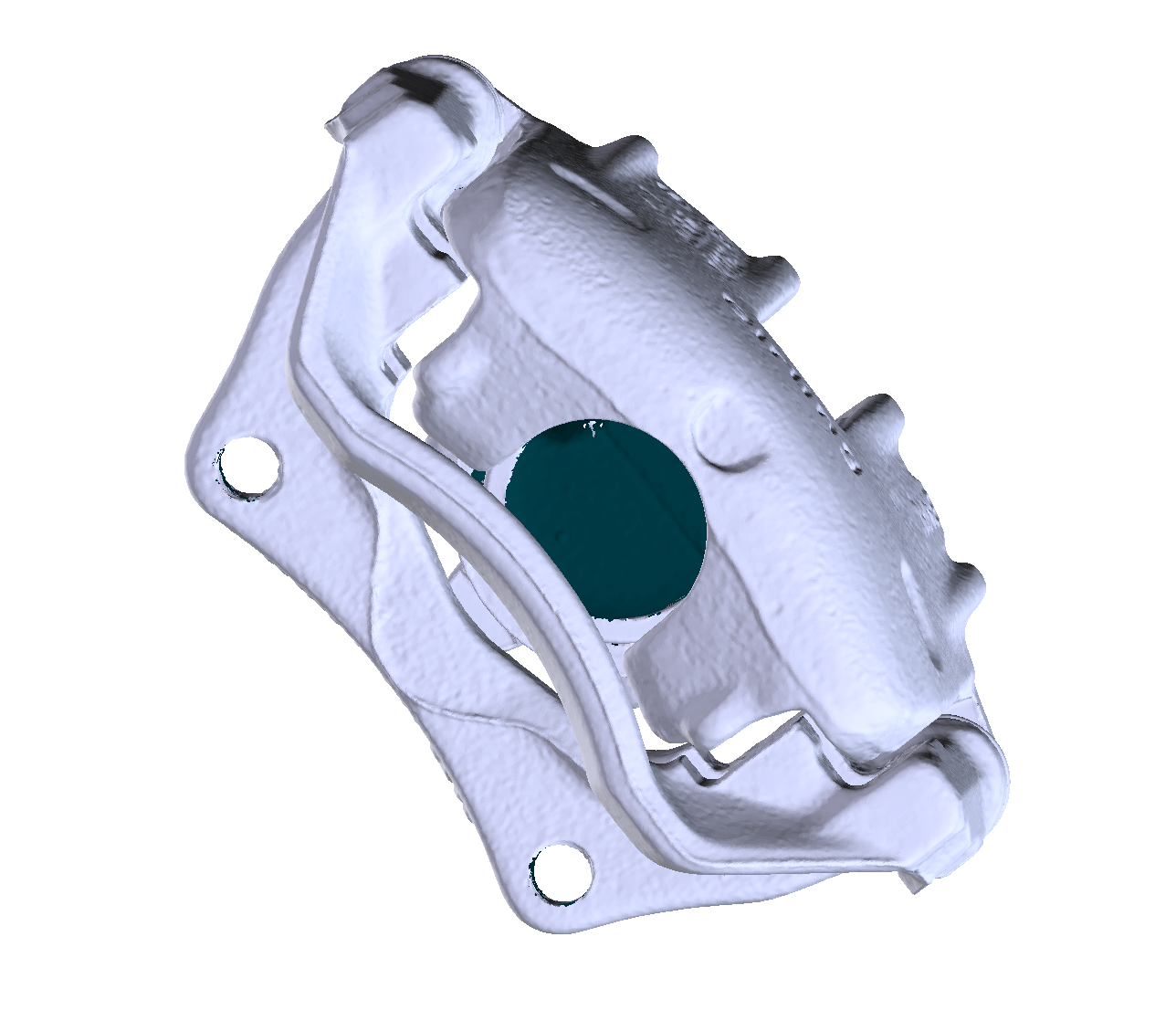

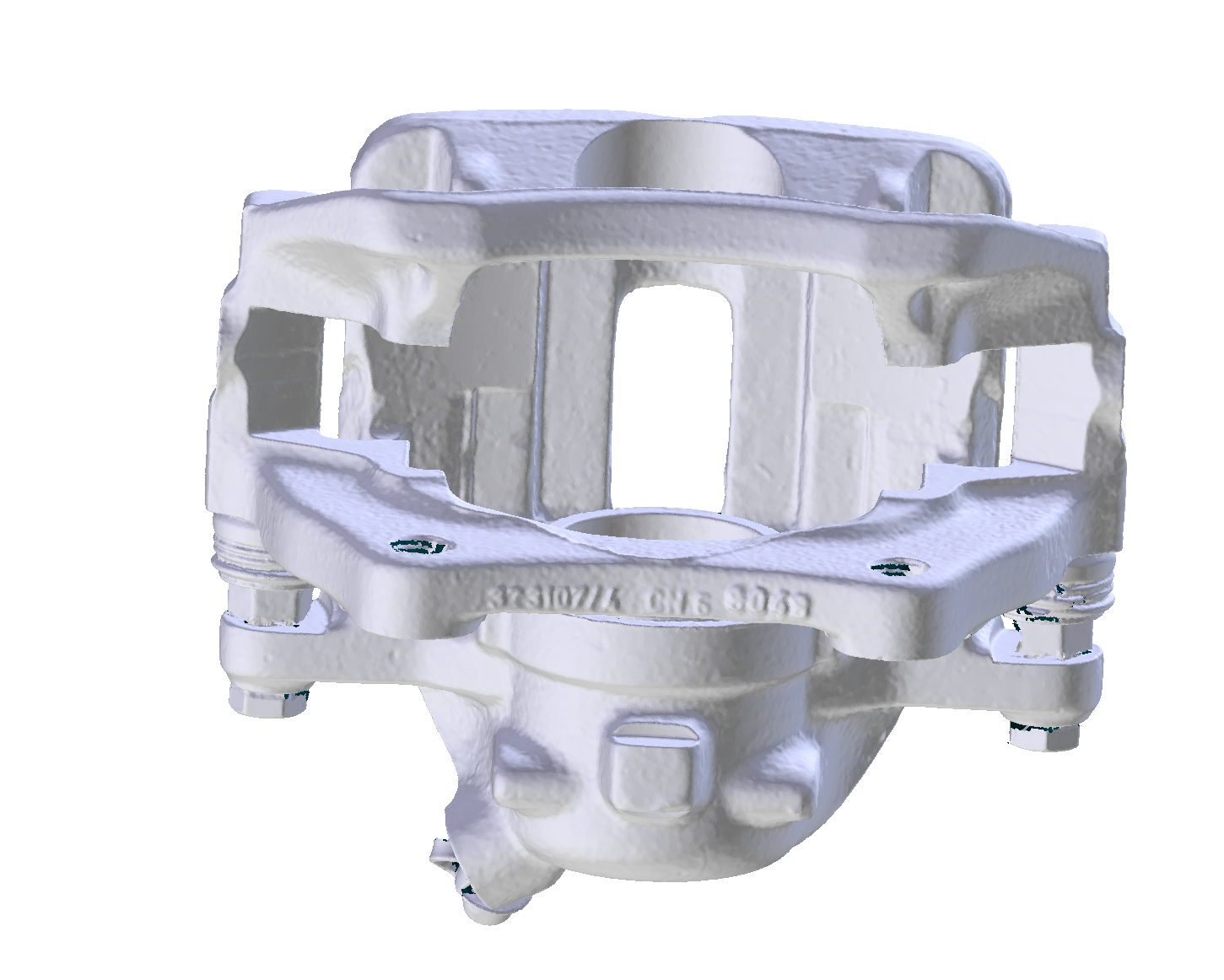

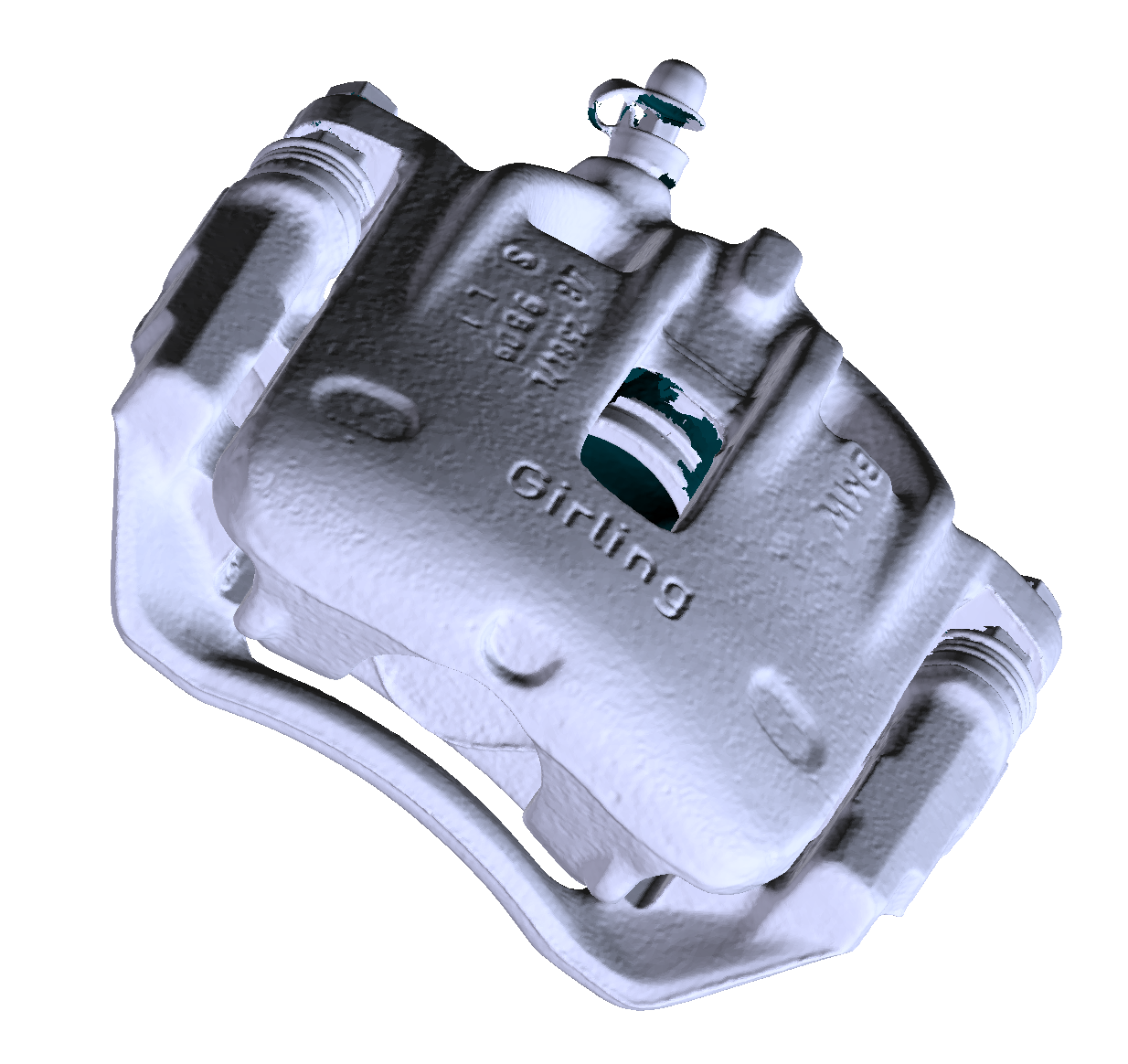

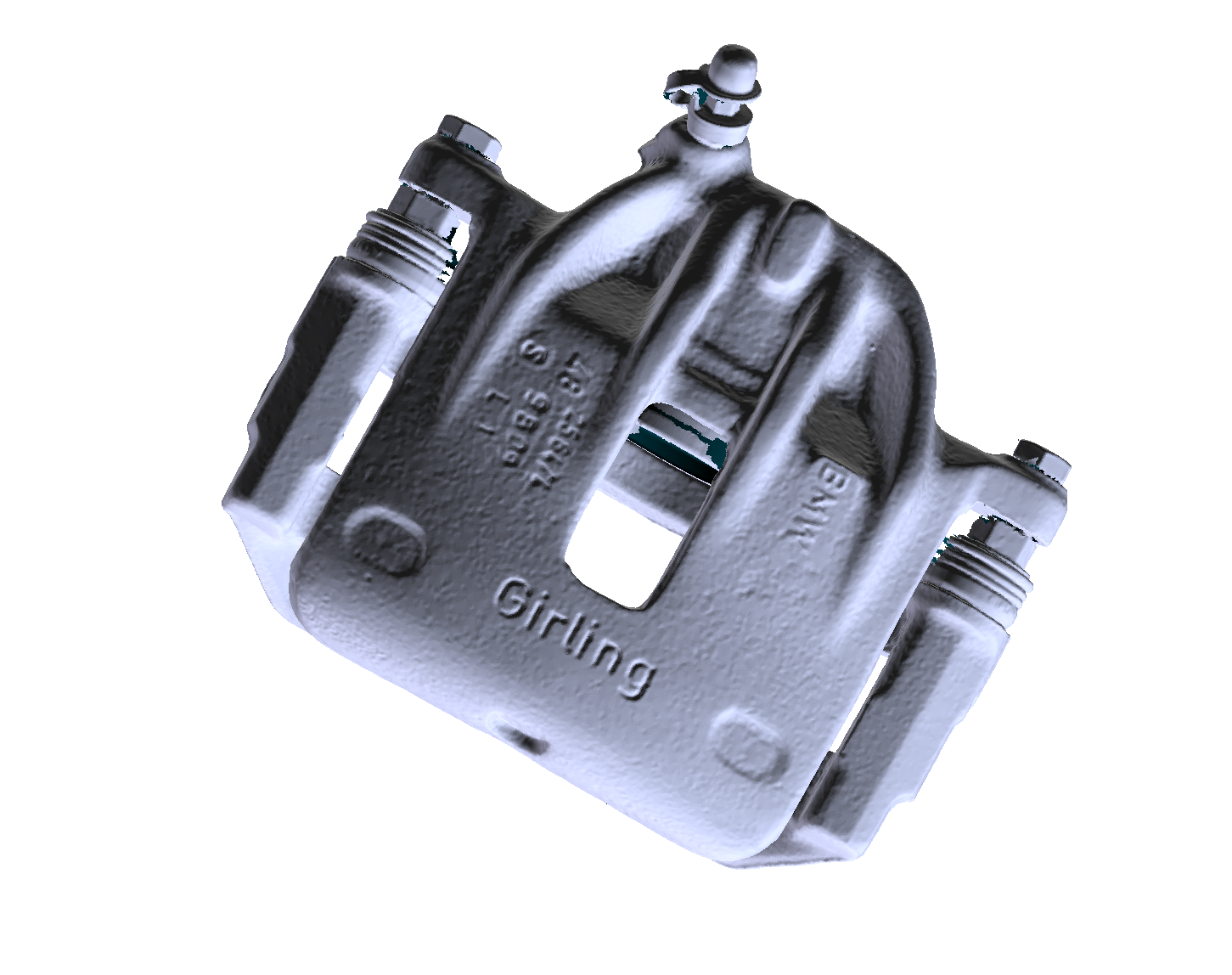

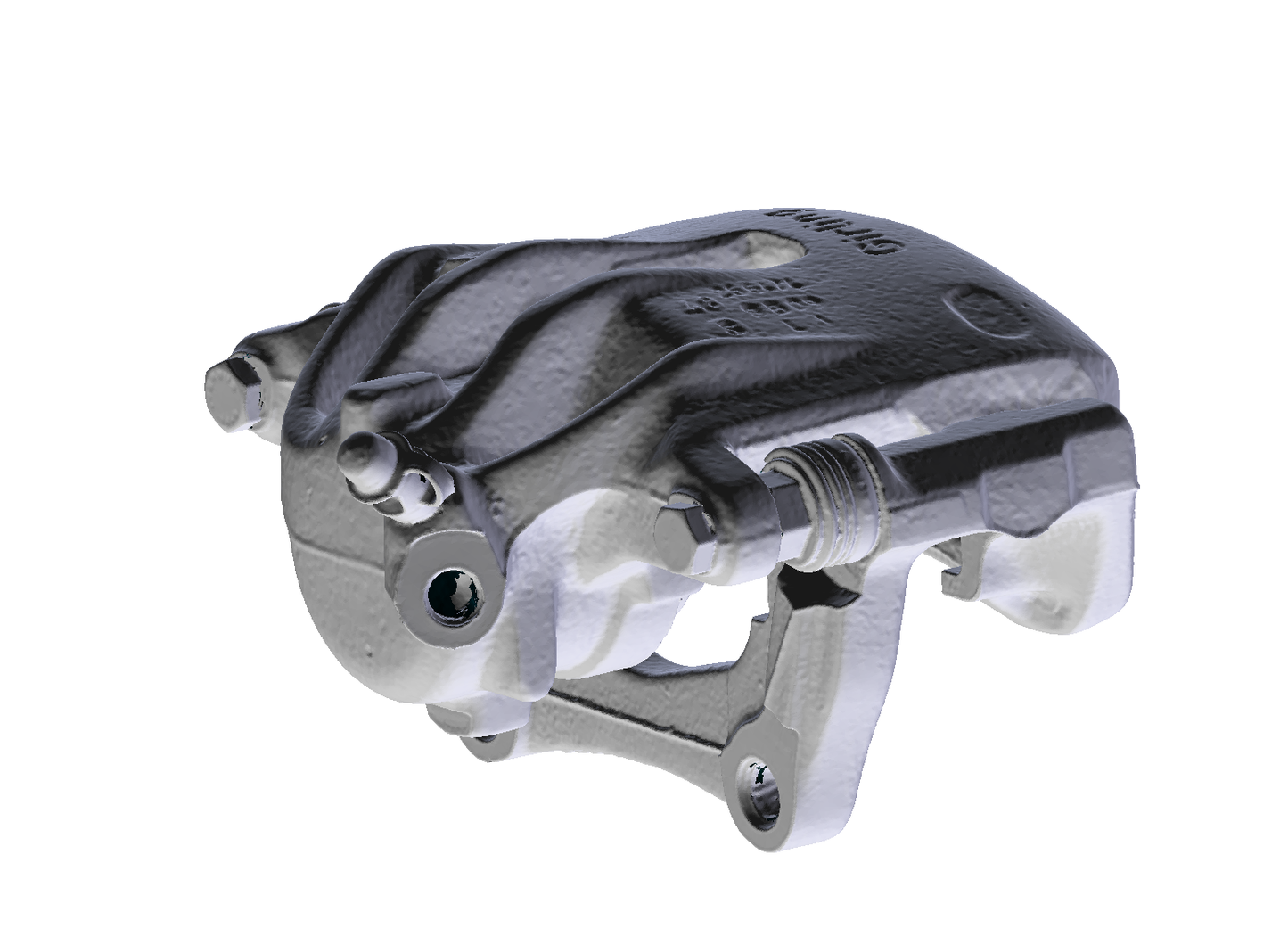

This high-resolution 3D scan captures a factory Girling manufactured front caliper in precise detail, making it ideal for reverse engineering or custom part design.

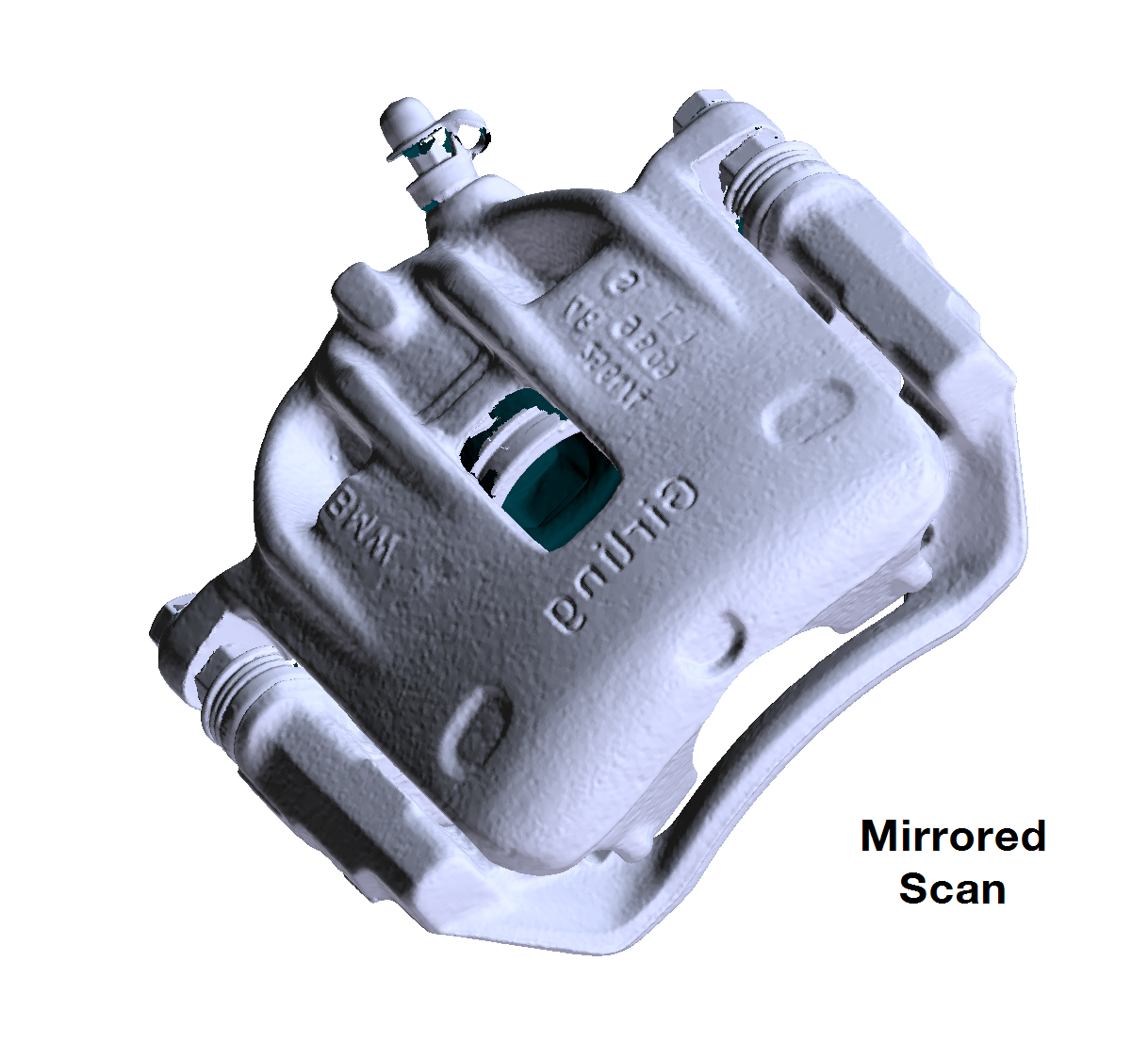

This caliper was scanned with the piston fully retracted and the caliper in the furthest outboard position in the caliper carrier as if a new set of pads was being installed. The left side caliper was scanned for this listing but a mirrored version of this scan is also included if a right side caliper scan is needed for your project.
Key features:
LH caliper scan and mirrored scan for RH caliper geometry
Scanned using Faro Quantum arm with FaroBlu Xr scanner for high accuracy geometry
Applicable to all with all non-M E30 models
Purchasing will allow download of STL files. The coordinate system is located on the mounting plane, in the center of the two threaded mounting holes.
This 3D scan is licensed, not sold. You may use the scan as a reference to design and manufacture your own parts. You may not resell, redistribute, or upload the scan data in original or modified form. For commercial use, purchase of a Commercial License is required. See full details here.
